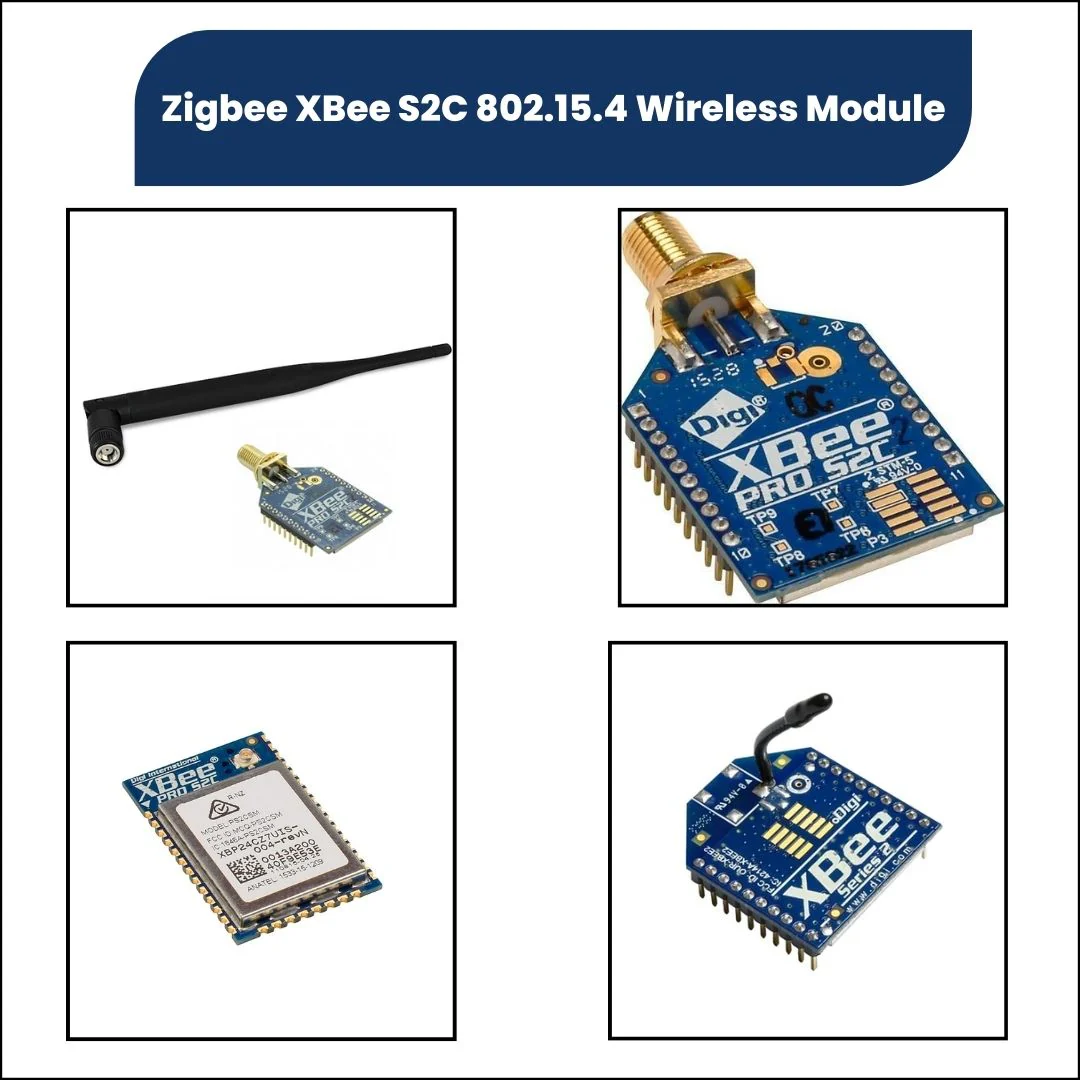

Zigbee XBee S2C 802.15.4 Wireless Module

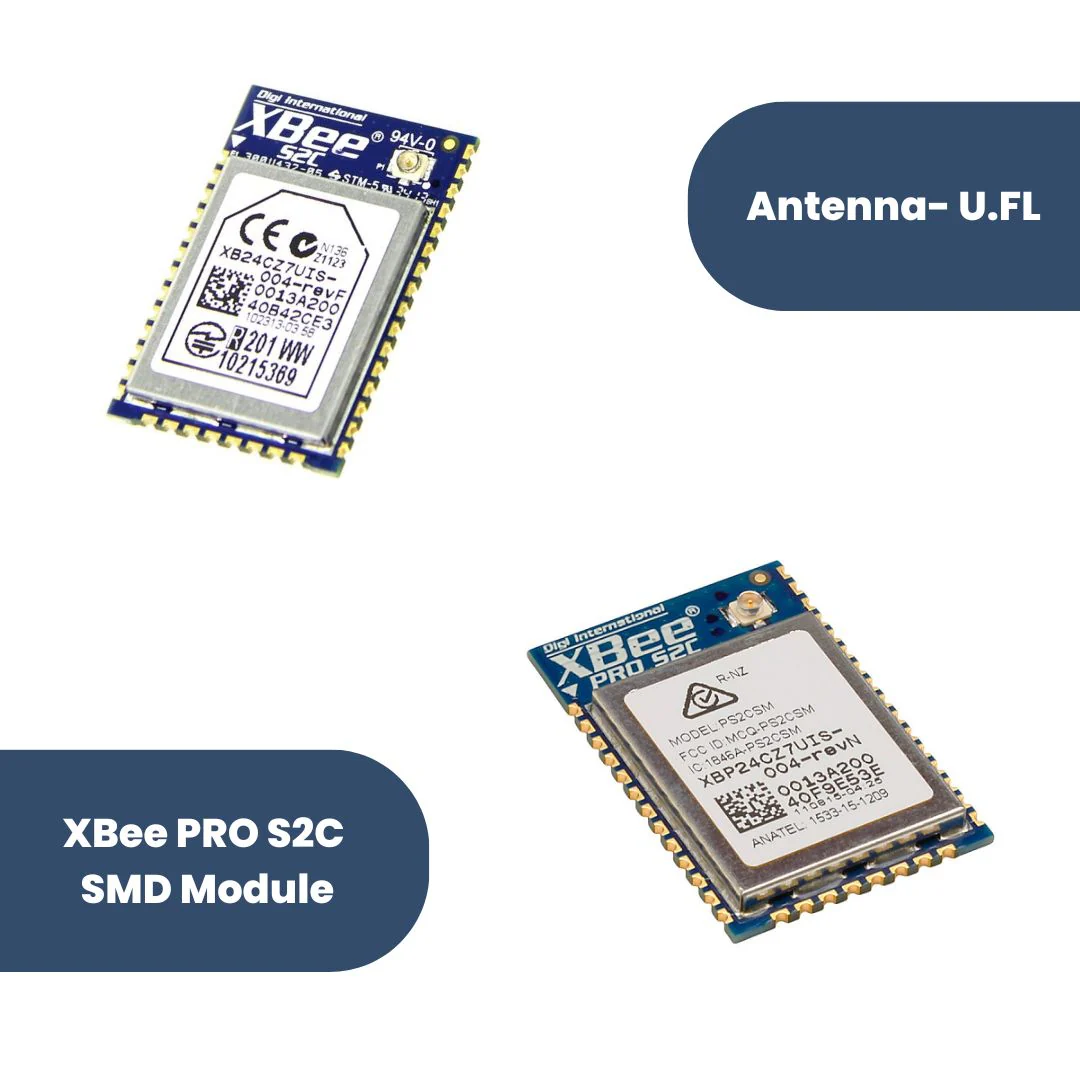

XBee S2C RF Module for Wireless 802.15.4| U.FL| Pro Antenna for Communication and IoT Applications
- Transmission Frequency: 2.4GHz to 2.5GHz
- Number of Channels: 16 Direct Sequence Channels
- Featured with UART (250 Kb/s maximum) and SPI (5 Mb/s maximum) interface
- Featured with software adjustable transmitting power
- Indoor/Urban Range: 200ft
- Outdoor RF line-of-sight Range: up to 4000ft
- Transmit Power Output: 6.3mW (8dBm) in Boost mode,2mW (3dBm) in Normal mode
- RF Data Rate: 250,000 bps
- Receiver Sensitivity: -102dBm in Boost mode, -100dBm in Normal mode
- Supply Voltage Range: +2.1V to +3.6V
- Operating Current: 33mA (at3.3V, for Normal mode) , 45mA (at 3.3V,for Boost mode)
- Idle Current: 9mA
- Maximum output current on all pins together: 40mA
- Power-down Current: <1uA @25C
- ESD protection: 3000V
Applications
- Industrial application control
- Smart energy
- Medium range wireless communication
XBee S2C RF Module for Wireless 802.15.4| U.FL| Pro Antenna for Communication and IoT Applications
- Transmission Frequency: 2.4GHz to 2.5GHz
- Number of Channels: 16 Direct Sequence Channels
- Featured with UART (250 Kb/s maximum) and SPI (5 Mb/s maximum) interface
- Featured with software adjustable transmitting power
- Indoor/Urban Range: 200ft
- Outdoor RF line-of-sight Range: up to 4000ft
- Transmit Power Output: 6.3mW (8dBm) in Boost mode,2mW (3dBm) in Normal mode
- RF Data Rate: 250,000 bps
- Receiver Sensitivity: -102dBm in Boost mode, -100dBm in Normal mode
- Supply Voltage Range: +2.1V to +3.6V
- Operating Current: 33mA (at3.3V, for Normal mode) , 45mA (at 3.3V,for Boost mode)
- Idle Current: 9mA
- Maximum output current on all pins together: 40mA
- Power-down Current: <1uA @25C
- ESD protection: 3000V
Applications
- Industrial application control
- Smart energy
- Medium range wireless communication
