Smart Elex 15D 13A Continuous, 30A Peak DC Motor Driver Board for Robotics

The SmartElex 15D Dual Channel DC Motor Driver is a powerful and reliable solution for driving two brushed DC motors with ease. It supports up to 13A continuous and 30A peak current, making it suitable for high-load applications. The board is compatible with 3V and 5V logic levels and offers PWM + direction control, thermal shutdown, and overcurrent protection. Ideal for Arduino, Raspberry Pi, or other MCUs, it operates from 6.8V to 30V and includes a connection cable. Compact and efficient, it's perfect for robotics and mechatronics projects.

Specifications:

• Model: SmartElex 15D

• Channels: 2 (Dual Motor Control)

• Operating Voltage: 6.8V to 30V

• Continuous Current: 13A

• Peak Current: 30A (for 10 sec)

• Control Method: PWM and direction (TTL compatible)

• Protection: Overcurrent, Thermal shutdown, Undervoltage lockout

• Logic Input: 3V & 5V compatible

• Dimensions (L×W×H): 75 × 63 × 15 mm

• Weight: 30g

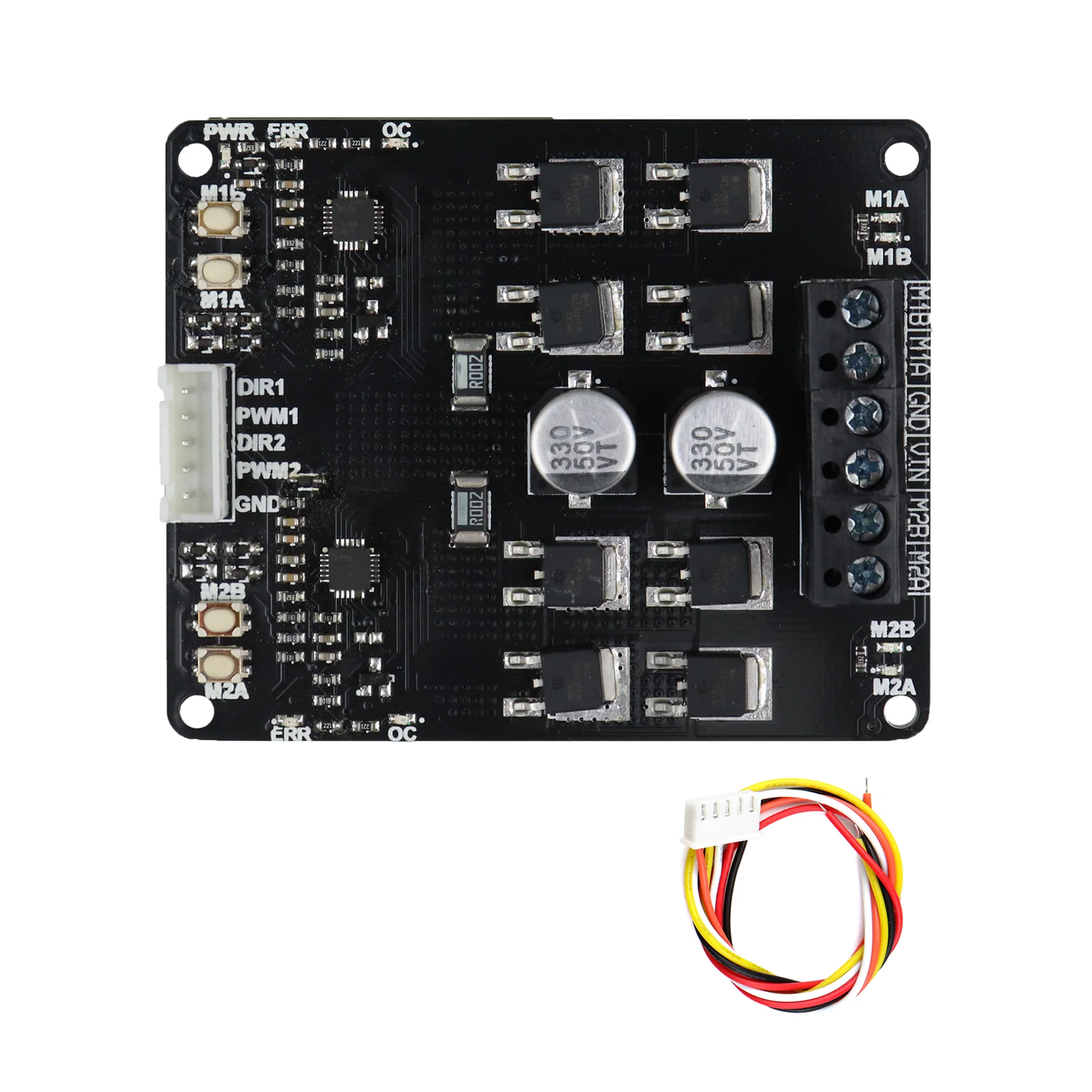

• Included: 1x Driver Board, 1x Connection Cable
