Raspberry Pi Snap 12MP: Classic Compact Camera Module with Autofocus

After nearly 7 years of anticipation, Raspberry Pi has unveiled the Camera Module 3 series, succeeding the popular Camera Module 2 released in April 2016.

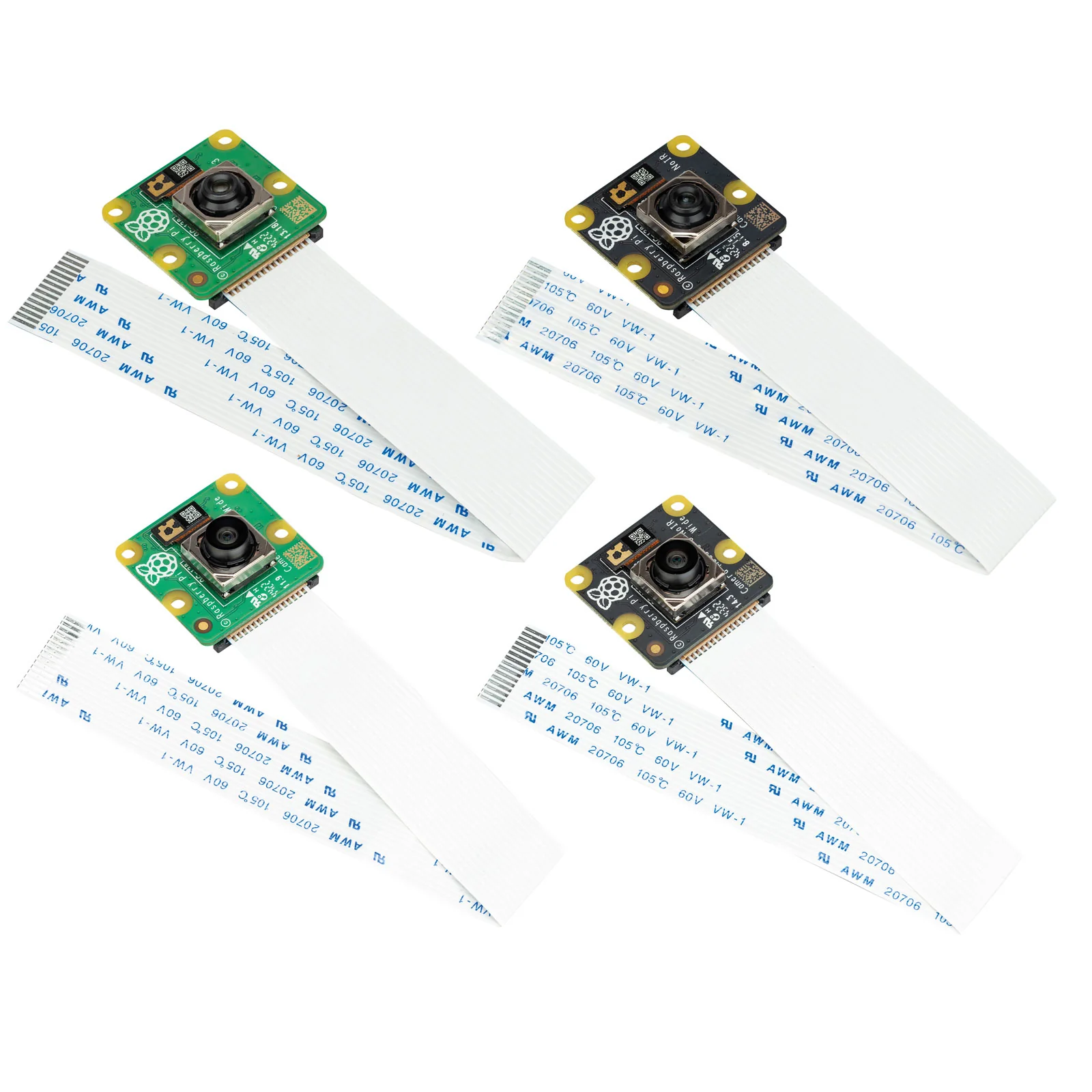

The new Raspberry Pi Camera Module 3 Standard/Wide is designed for Raspberry Pi computers, boasting autofocus and a 12-megapixel sensor, seamlessly integrated with Raspberry Pi’s Picamera2 Python library for precise image control.

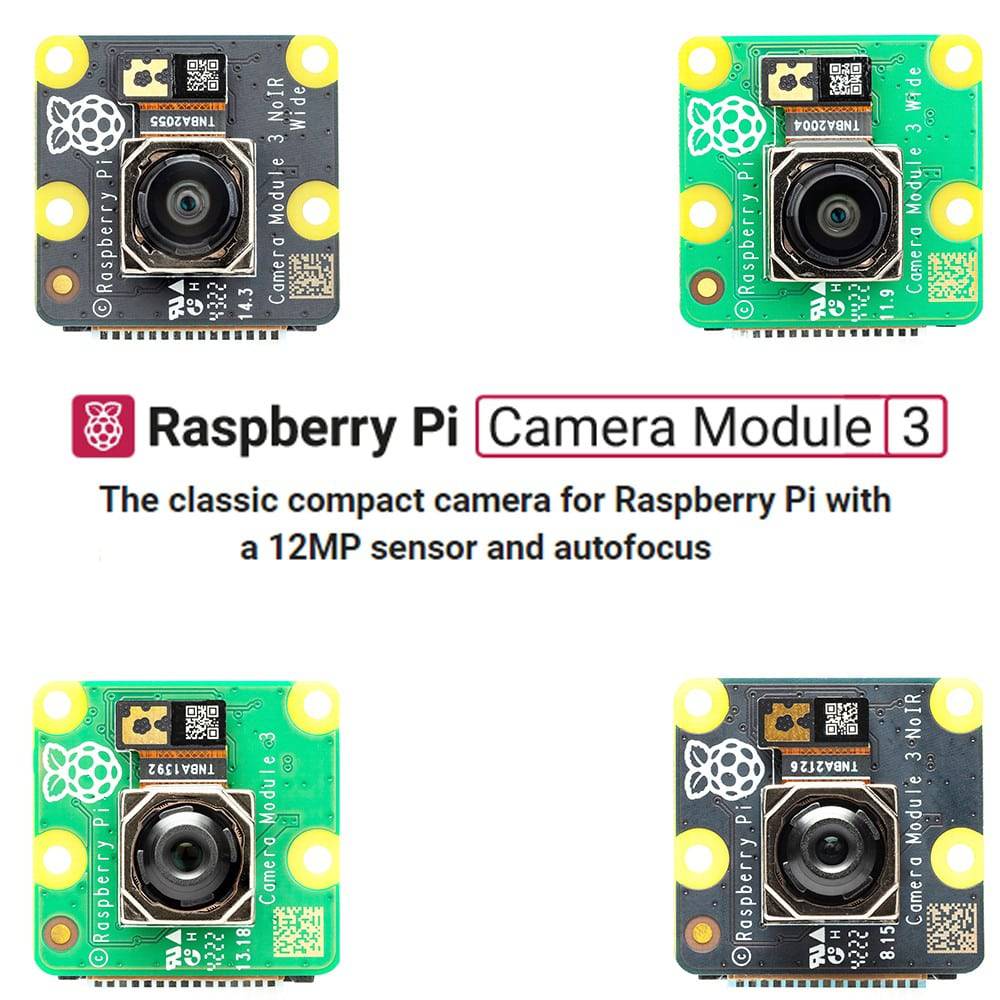

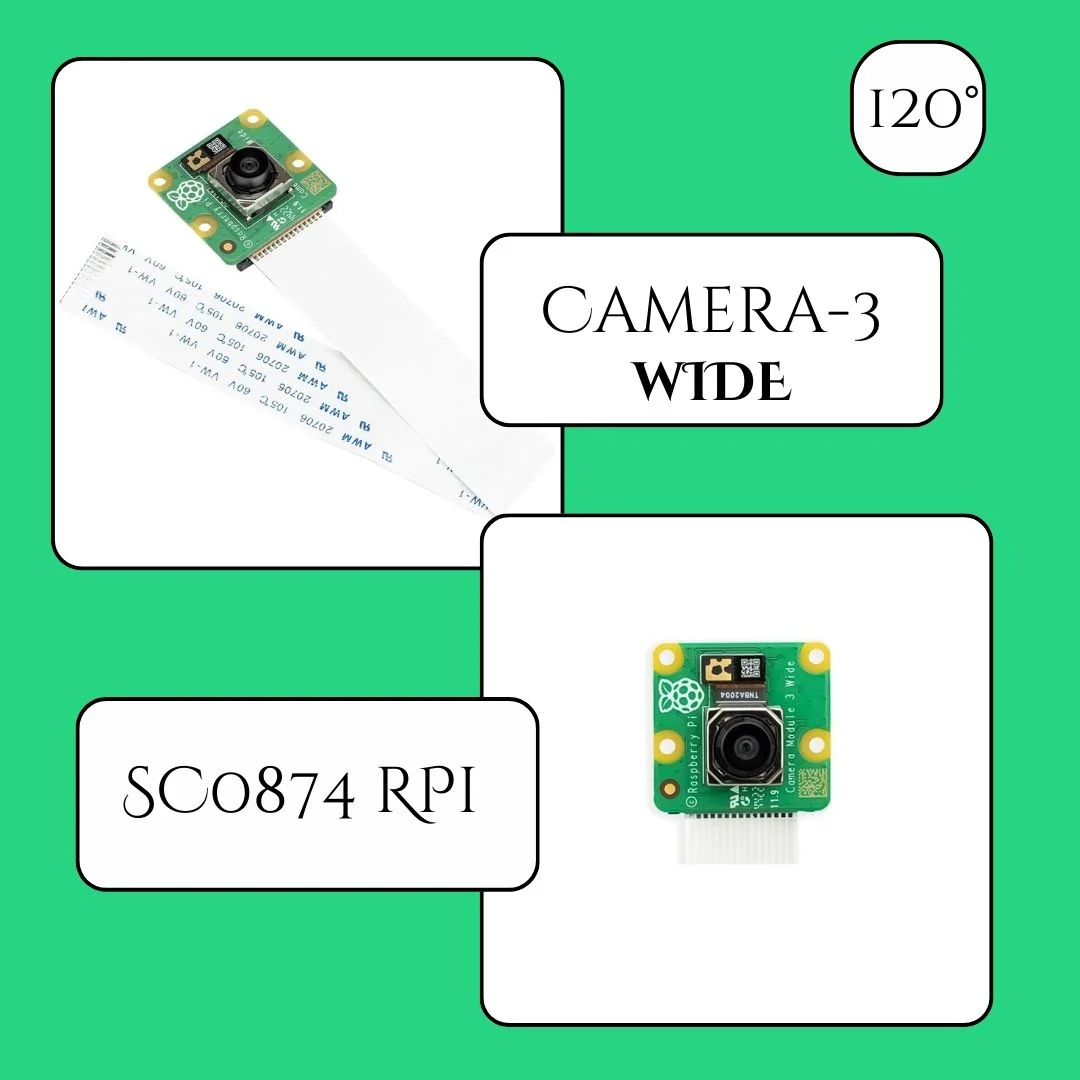

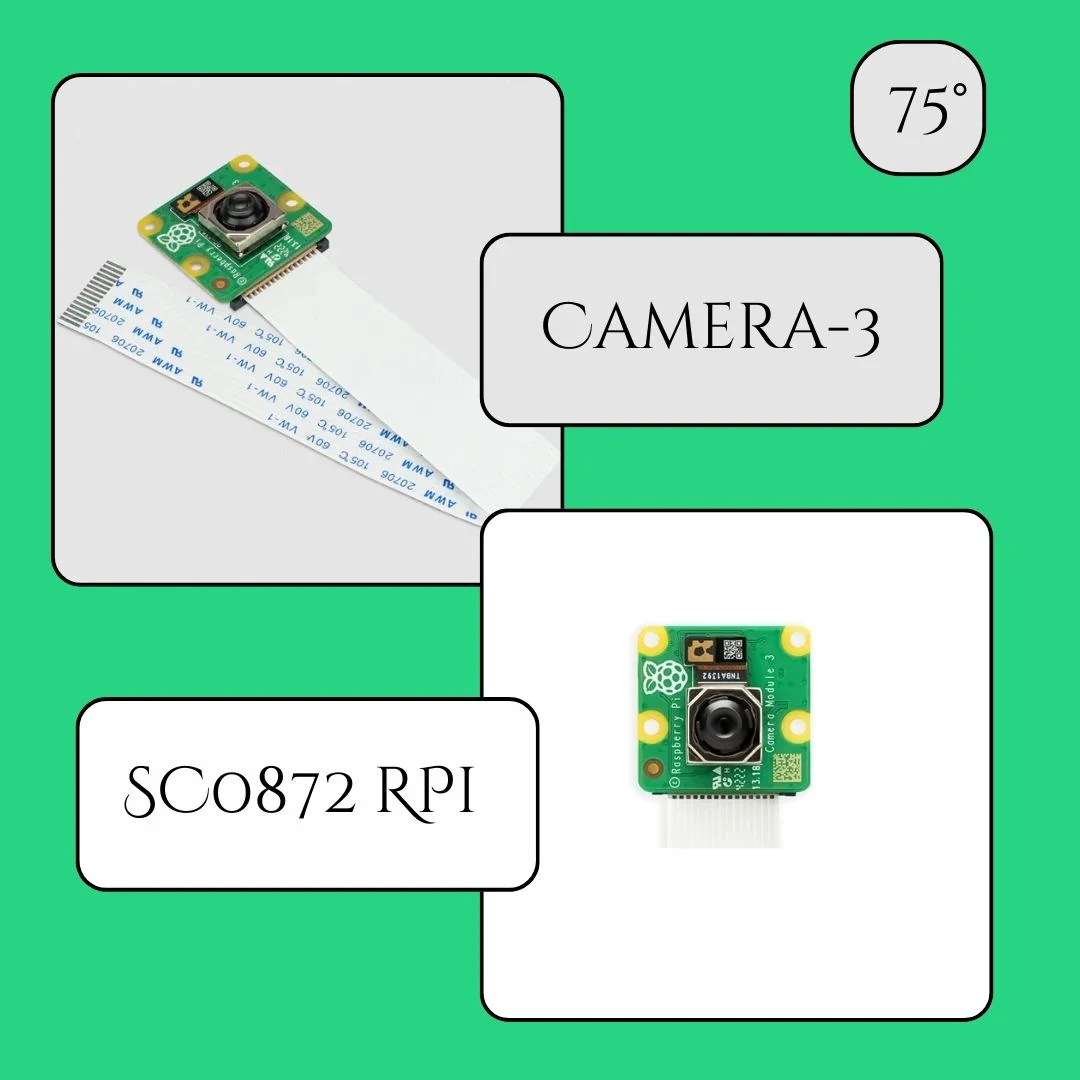

The Camera Module 3 marks a significant upgrade over its predecessor, featuring a 12-megapixel Sony IMX708 image sensor. It is available in standard (75°) and wide-angle (120°) lens options, as well as in regular and infrared-sensitive (NoIR) versions:

• The standard variant captures images in normal lighting conditions.
• The NoIR variant lacks an infrared filter, allowing it to be paired with an infrared light source for nighttime photography.

Features and Specifications:

• Back-illuminated and stacked CMOS 12-megapixel image sensor (Sony IMX708)
• High signal-to-noise ratio (SNR)
• Built-in 2D Dynamic Defect Pixel Correction (DPC)
• Phase Detection Autofocus (PDAF) for rapid autofocus
• QBC Re-mosaic function
• HDR mode (up to 3-megapixel output)
• CSI-2 serial data output
• 2-wire serial communication (supports I2C fast mode and fast-mode plus)
• 2-wire serial control of focus mechanism
• Improved low-light sensitivity
• High dynamic range (HDR) support
• Sony IMX708 12MP sensor with I2C-controlled focus actuator
• Large 7.4mm diagonal sensor
• Resolution: 12 Megapixels
• Diagonal Viewing Angle: 75º
• Compatible with all models of Raspberry Pi*

Useful Link:

https://www.raspberrypi.com/documentation/computers/camera_software.html
