Pulse Position Modulation (PPM) Educational Trainer Kit with Demodulator Circuit

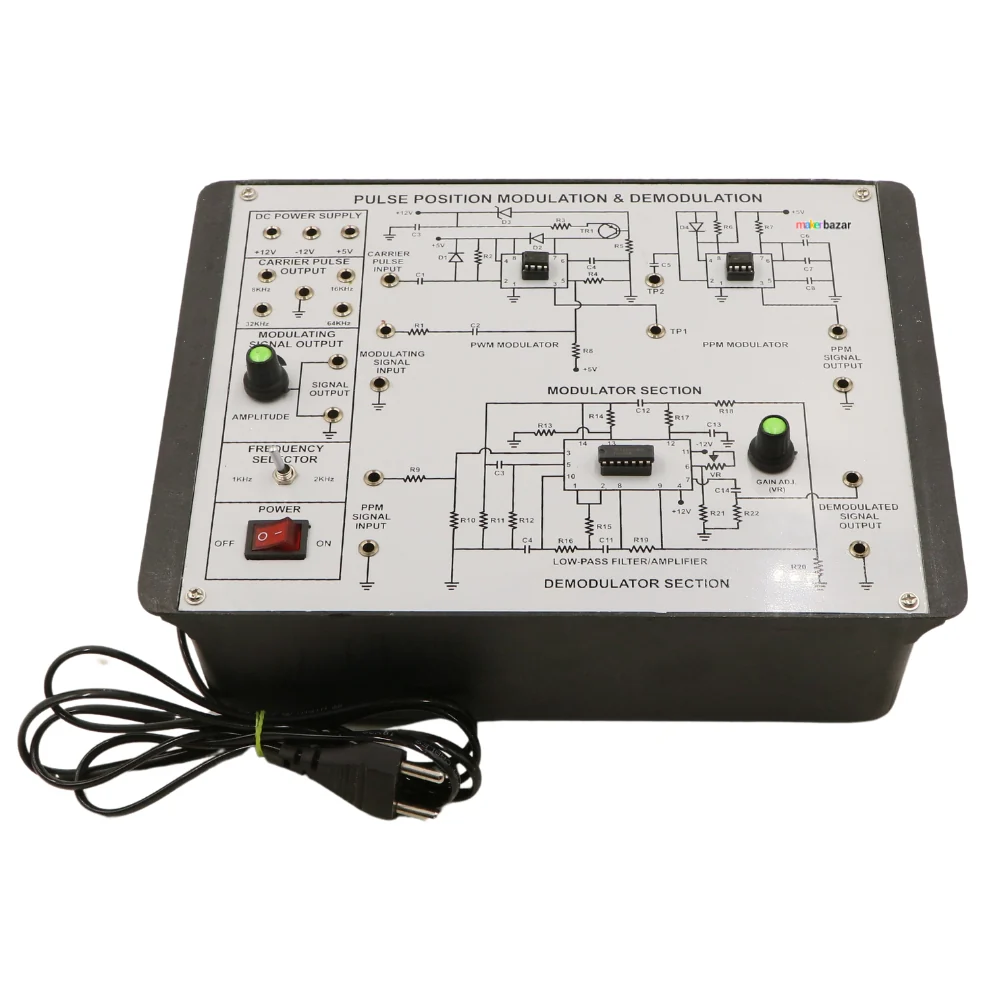

The Pulse Position Modulation and Demodulation Trainer Kit offers a complete setup to study the working of time-based pulse modulation in digital communication. It enables clear observation of the signal transition from analog input to PPM output and back to analog through demodulation. Ideal for electronics labs, it helps students grasp the principles of sampling, modulation, and filtering.

Key Specifications

• Power Supply: ±12V DC

• Carrier Frequency: 20kHz (selectable)

• Modulation Circuit: PPM generator with timing control

• Demodulator Circuit: Low pass filter and amplifier

• Input: Analog audio/modulating signal

• Output: PPM signal (modulated) and analog output (demodulated)

• Indicator LEDs: For sync and output signals

• Switches: Frequency selector and power ON/OFF
