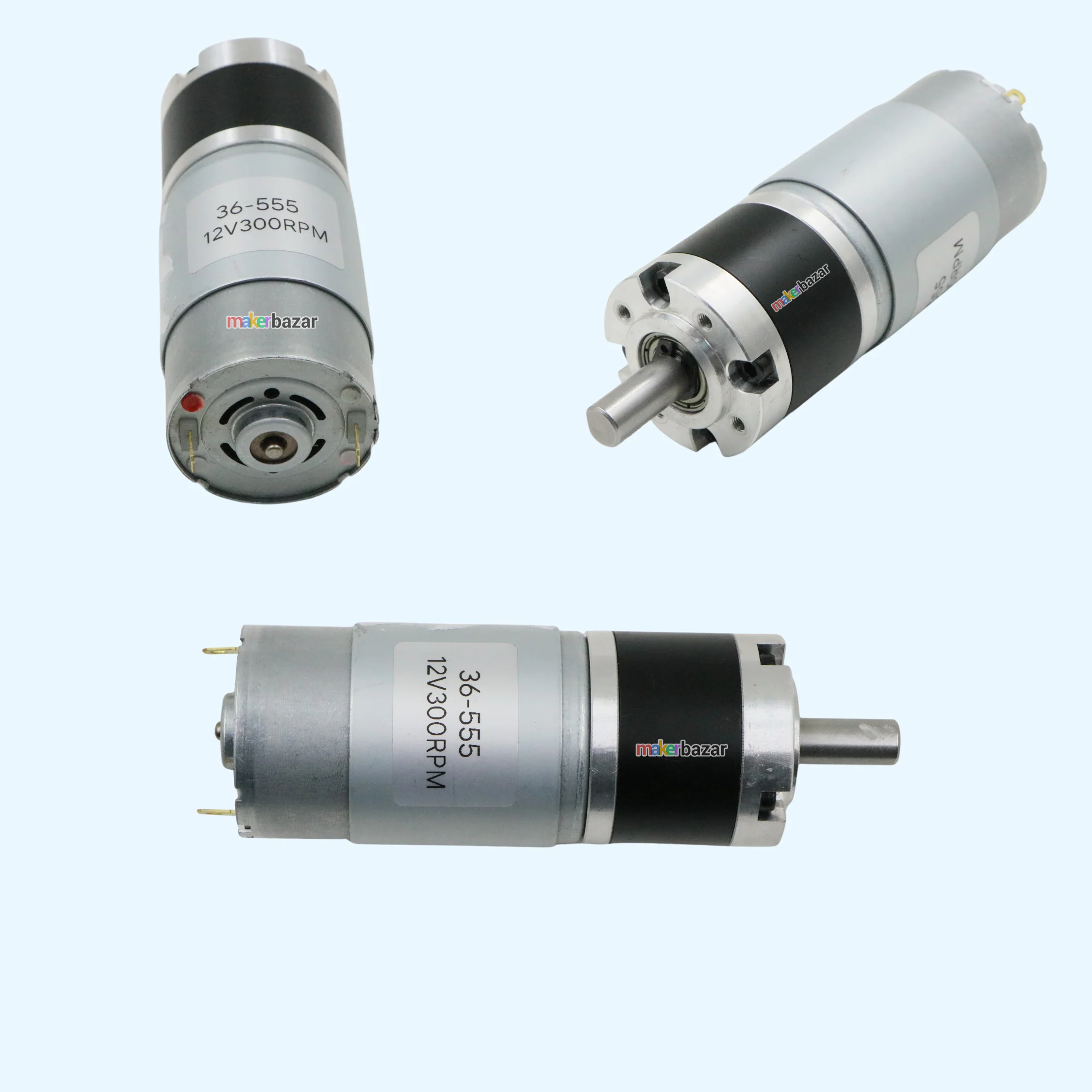

PG36-555 Planetary Gear 12V High Torque Metal Gear DC Motor
PG36 555 Planetary 12Volt High Torque Metal Gear DC Motor with Gearbox
TheĀ 36-555 Planetary Gear 12V DC MotorĀ is a compact, high-torque geared motor designed for robotics, automation, conveyor systems, smart machines, and DIY engineering projects. Featuring a precision planetary gearbox, this motor delivers excellent torque transmission, smooth operation, and high efficiency while maintaining a compact form factor.
Planetary gear motors distribute load across multiple gears, resulting in higher power density, improved durability, and better torque output compared to conventional spur gear motors. The robust metal gearbox ensures reliable performance even in demanding applications where space is limited but high torque is required.
With its 8mm D-type output shaft and 12V operating voltage, the 36-555 geared motor is easy to integrate into a wide range of mechanical systems.

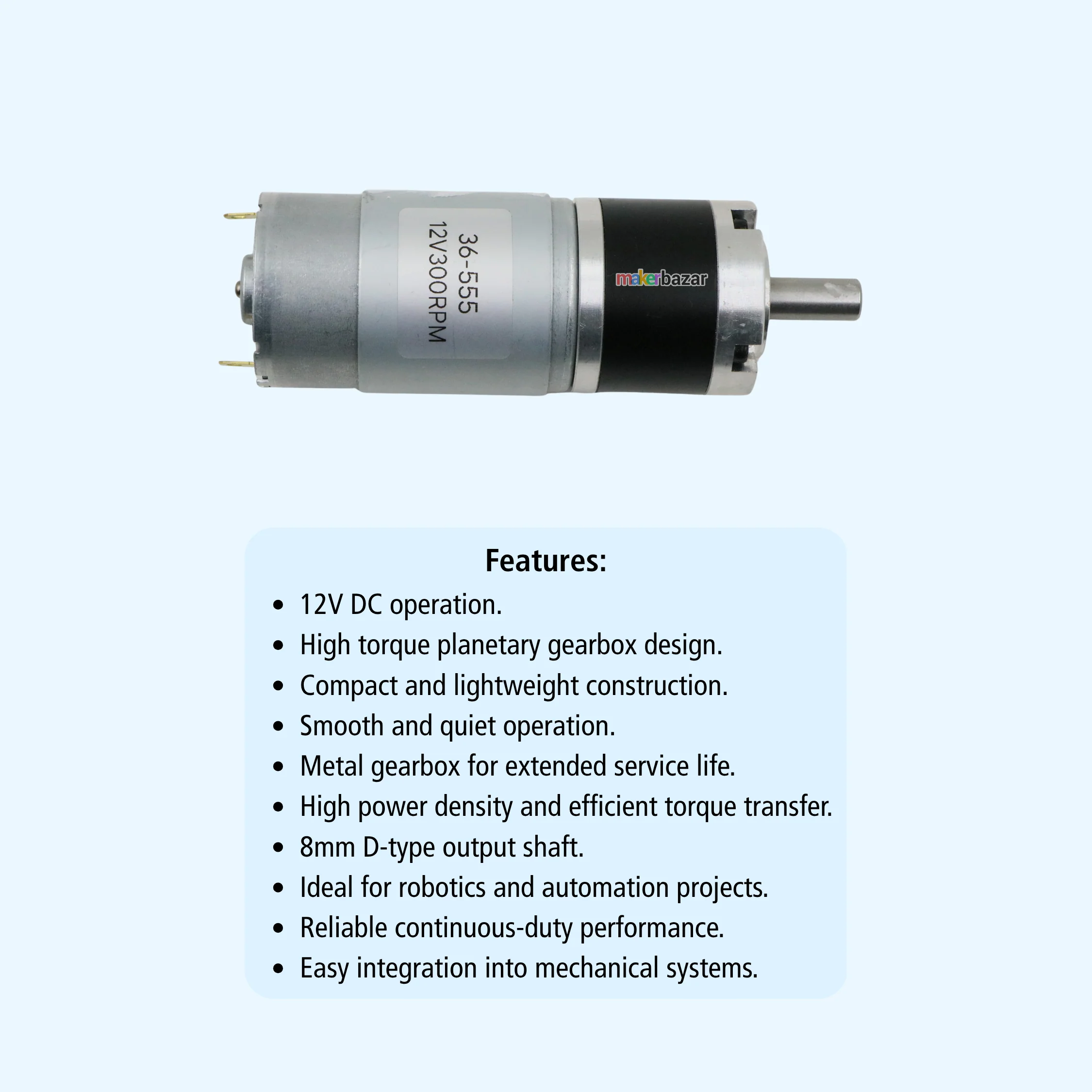

Key Features
- 12V DC operation.
- High torque planetary gearbox design.
- Compact and lightweight construction.
- Smooth and quiet operation.
- Metal gearbox for extended service life.
- High power density and efficient torque transfer.
- 8mm D-type output shaft.
- Ideal for robotics and automation projects.
- Reliable continuous-duty performance.
- Easy integration into mechanical systems.

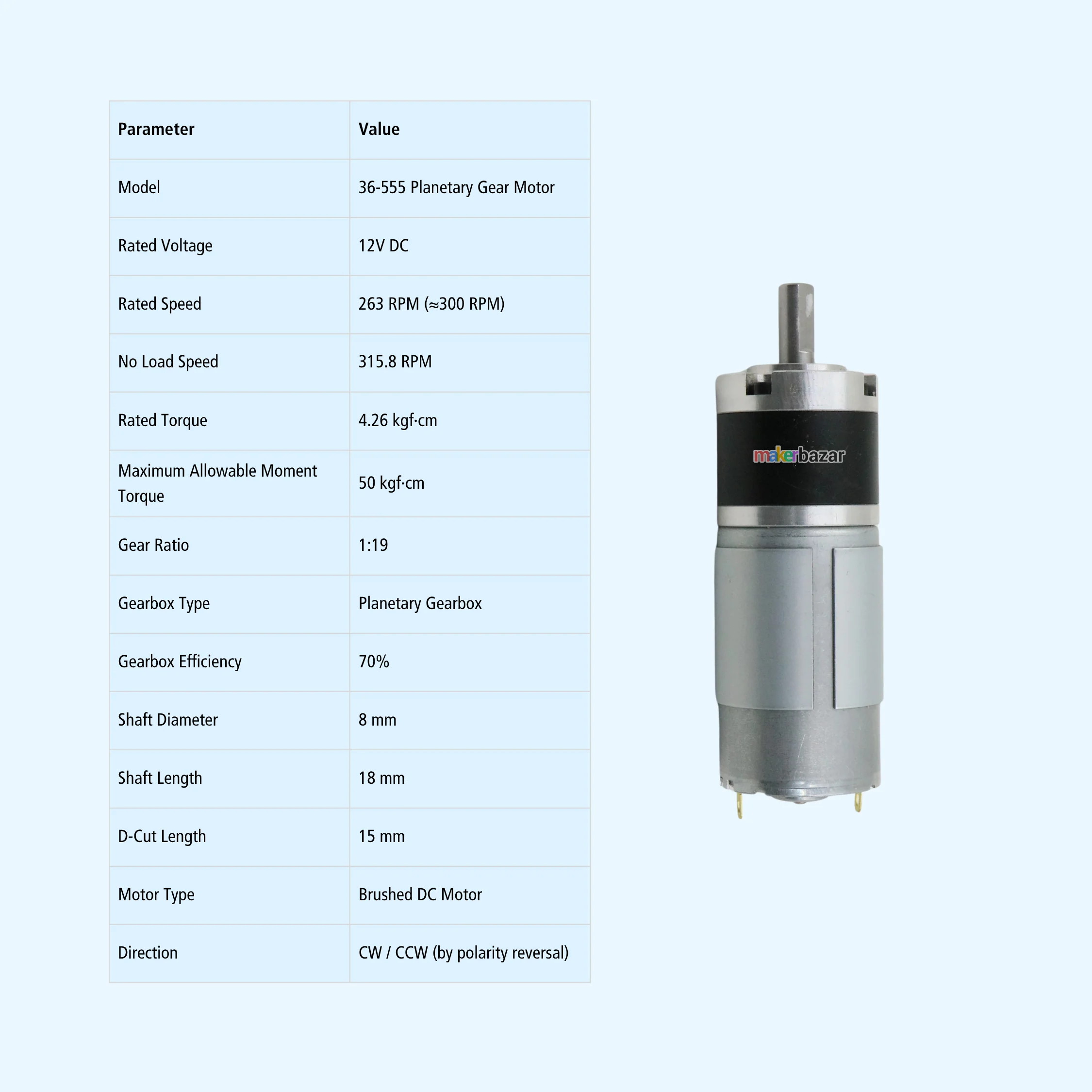

Specifications
| Parameter | Value |
|---|---|
| Model | 36-555 Planetary Gear Motor |
| Rated Voltage | 12V DC |
| Rated Speed | 263 RPM (ā300 RPM) |
| No Load Speed | 315.8 RPM |
| Rated Torque | 4.26 kgf.cm |
| Maximum Allowable Moment Torque | 50 kgf.cm |
| Gear Ratio | 1:19 |
| Gearbox Type | Planetary Gearbox |
| Gearbox Efficiency | 70% |
| Shaft Diameter | 8 mm |
| Shaft Length | 18 mm |
| D-Cut Length | 15 mm |
| Motor Type | Brushed DC Motor |
| Direction | CW / CCW (by polarity reversal) |

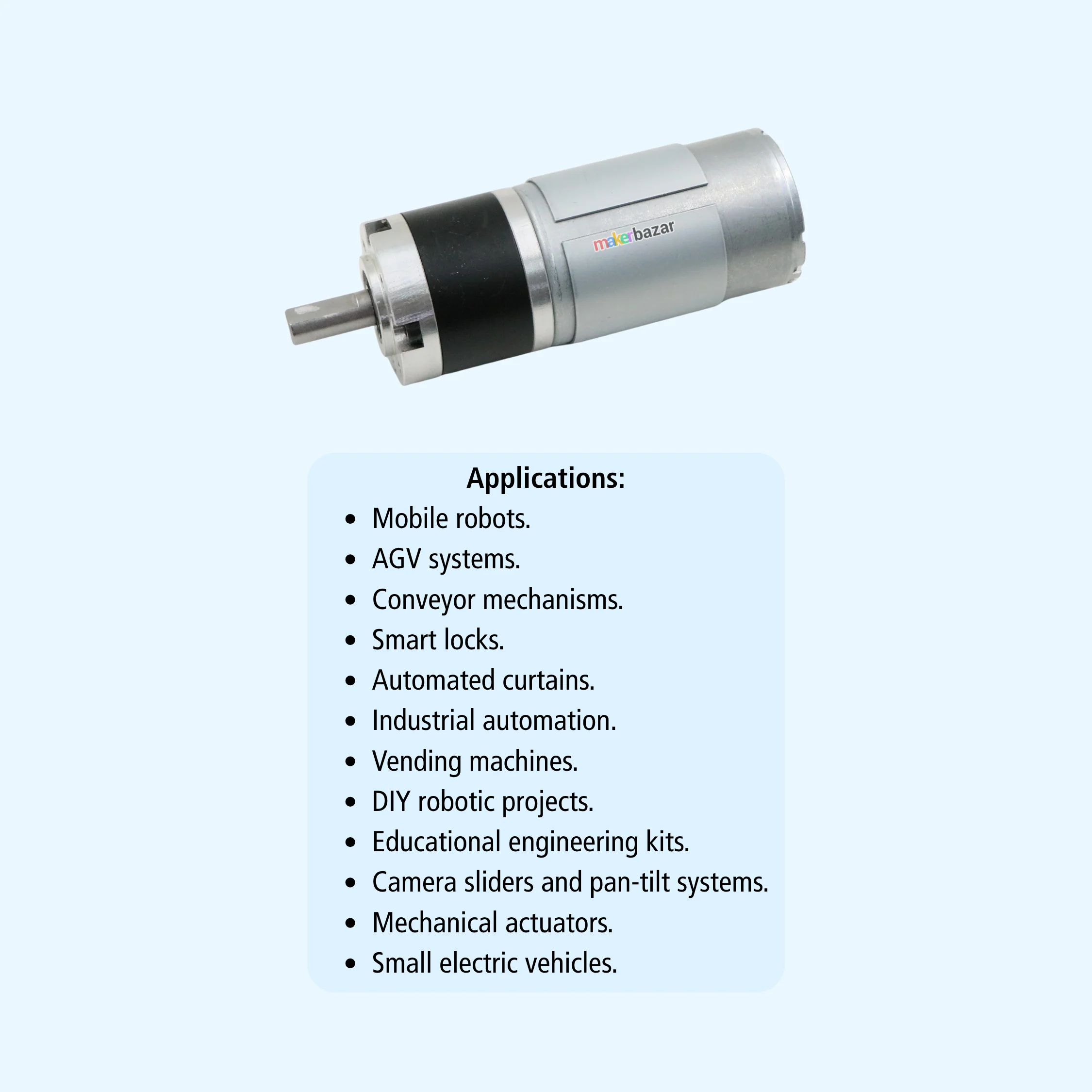

Applications
- Mobile robots
- AGV systems
- Conveyor mechanisms
- Smart locks
- Automated curtains
- Industrial automation
- Vending machines
- DIY robotic projects
- Educational engineering kits
- Camera sliders and pan-tilt systems
- Mechanical actuators
- Small electric vehicles
Precautions
- Operate only within the recommended 12V DC supply range.
- Avoid exceeding the maximum allowable torque to prevent gearbox damage.
- Do not stall the motor for prolonged periods.
- Ensure proper shaft alignment during installation.
- Use appropriate motor drivers and power supplies.
- Avoid exposure to water, excessive dust, or corrosive environments.
- Secure mounting is recommended to reduce vibration and mechanical stress.
- Disconnect power before servicing or making mechanical adjustments.
