JST XHB 2.54mm Housing Connectors (with Lock)
XHB Wire Connector Housing 2.54mm Pitch with Lock

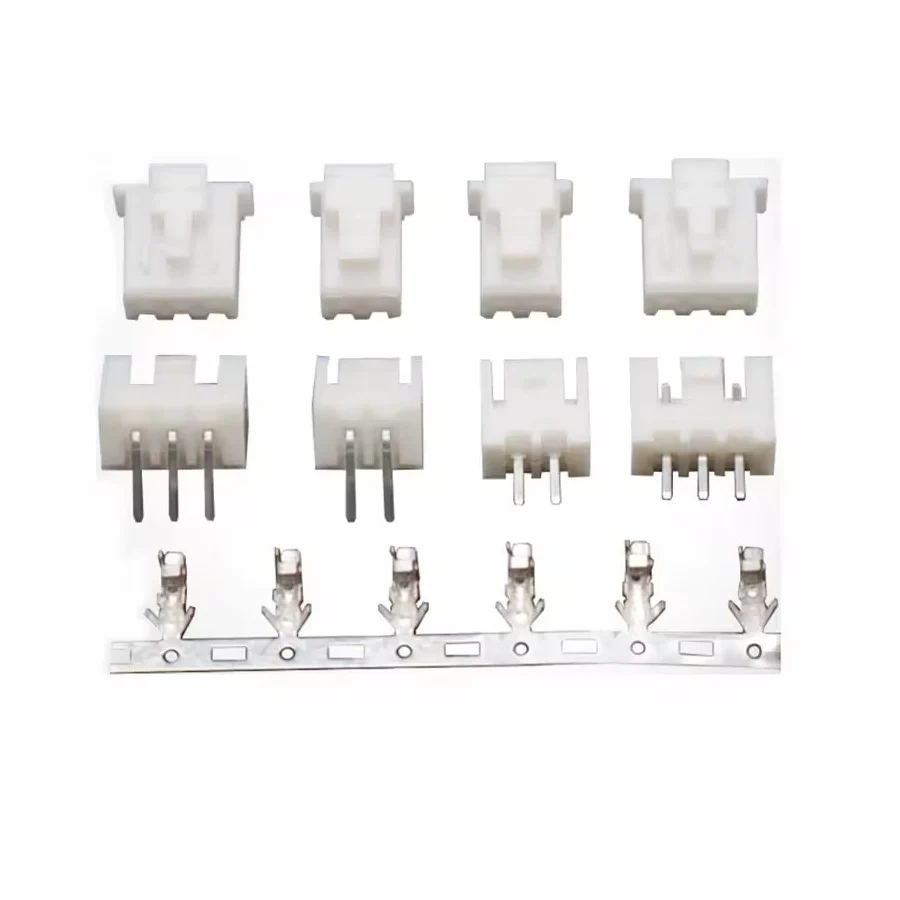

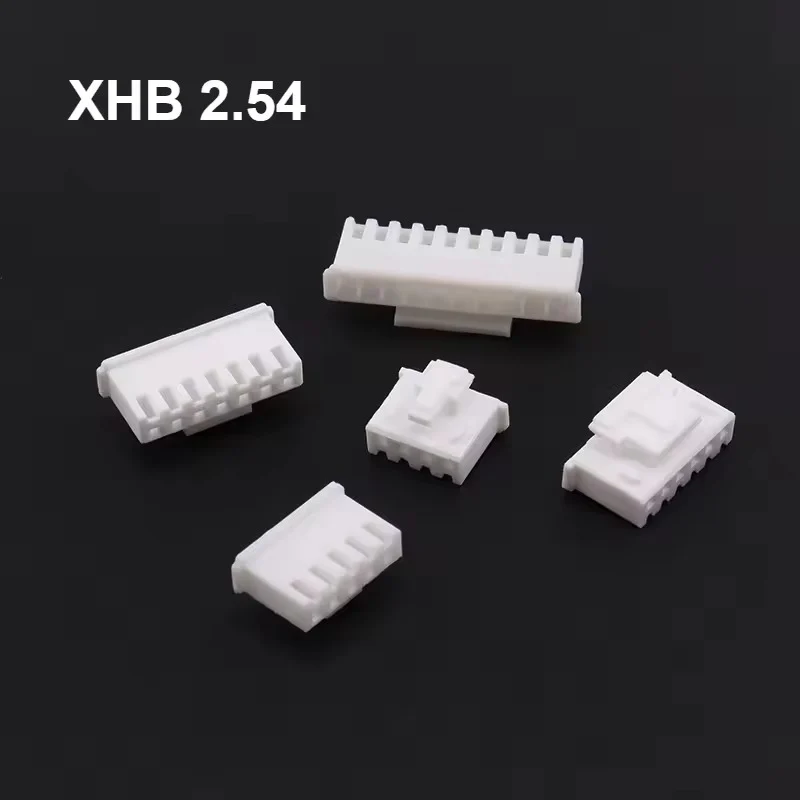

The JST XHB 2.54mm Housing Connector with Lock is a reliable wire-to-board connector housing designed for secure electrical connections in electronic, automotive, industrial, and DIY applications. Featuring a positive locking mechanism, the XHB series provides enhanced connection stability and protection against accidental disconnection caused by vibration or movement.
Manufactured from high-quality insulating material, these connectors offer excellent mechanical strength, electrical insulation, and durability. The 2.54mm pitch design makes them suitable for PCB interconnections, battery packs, LED lighting systems, robotics, embedded electronics, and general-purpose wiring applications.
Available in multiple pin configurations, the JST XHB series is widely used in consumer electronics, control systems, and prototype development.
Features
- Standard 2.54mm pitch connector housing
- Positive locking mechanism for secure connection
- Durable insulated housing material
- Reliable wire-to-board connectivity
- Easy crimp terminal insertion
- Compact and lightweight design
- Suitable for PCB and cable assemblies
- Vibration-resistant locking structure
- Ideal for electronic and industrial applications
Applications
- PCB interconnections
- Embedded systems
- Robotics projects
- Battery packs
- LED lighting systems
- Consumer electronics
- Automotive wiring
- Industrial control equipment
- DIY electronics projects
Technical Specifications
| Parameter | Specification |
|---|---|
| Series | JST XHB |
| Pitch | 2.54mm |
| Connector Type | Housing with Lock |
| Mounting Style | Cable Mount |
| Contact Type | Crimp Terminal |
| Housing Material | Insulating Plastic |
| Color | White |
| Application | Wire-to-Board Connection |
Available Variants
- XHB-2P
- XHB-3P
- XHB-4P
- XHB-5P
- XHB-6P
- XHB-7P
- XHB-8P
- XHB-10P
- XHB-12P
