Hongyan Hollow Shaft Incremental Encoder Series
EC25 EC28 EC35 EC43 EC56 Hongyan Hollow Shaft Encoder Series – Precision Incremental Rotary Encoders
The Hongyan Hollow Shaft Encoder Series includes high-precision incremental rotary encoders designed for accurate motion detection, speed monitoring, and position feedback in industrial automation and control systems. Available in multiple models such as EC25, EC28A, EC3501, EC43, and EC56, these encoders provide reliable rotational sensing with compact hollow shaft construction for easy mechanical integration.
Engineered for robotics, CNC systems, industrial machinery, automation equipment, and motion control applications, these encoders offer stable performance, durability, and precise signal output. Their hollow shaft design enables direct mounting onto rotating shafts, saving installation space and simplifying system assembly.
The series supports multiple size configurations and pulse options, making it suitable for a wide range of embedded and industrial applications requiring dependable incremental feedback.
Key Features
- High Precision Incremental Encoding – Accurate motion and rotation feedback.
- Hollow Shaft Design – Easy and space-saving shaft mounting.
- Compact Industrial Construction – Suitable for embedded systems and machinery.
- Reliable Performance – Stable signal output for automation applications.
- Durable Mechanical Design – Long operational lifespan.
- Multiple Encoder Sizes Available – Flexible integration options.
- Smooth Rotation Detection – Ideal for motion control systems.
- Suitable for Industrial Automation – Reliable encoder feedback solution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Hollow Shaft Incremental Encoder |
| Brand | Hongyan / Hirohiko |
| Encoder Type | Incremental |
| Shaft Type | Hollow Shaft |
| Output Type | Incremental Signal |
| Mounting Type | Shaft Mount |
| Application | Motion & Position Feedback |
| Dual Stream Support | Not Supported |
Variant Specifications
| Model | Size | Feature |
|---|---|---|
| EC3501 C15H30P3 | 35mm | Hollow Incremental Encoder |
| EC3501 C15H15P3 | 35mm | Compact Precision Encoder |
| EC25-20P | 25mm | Vertical Plug-in Design |

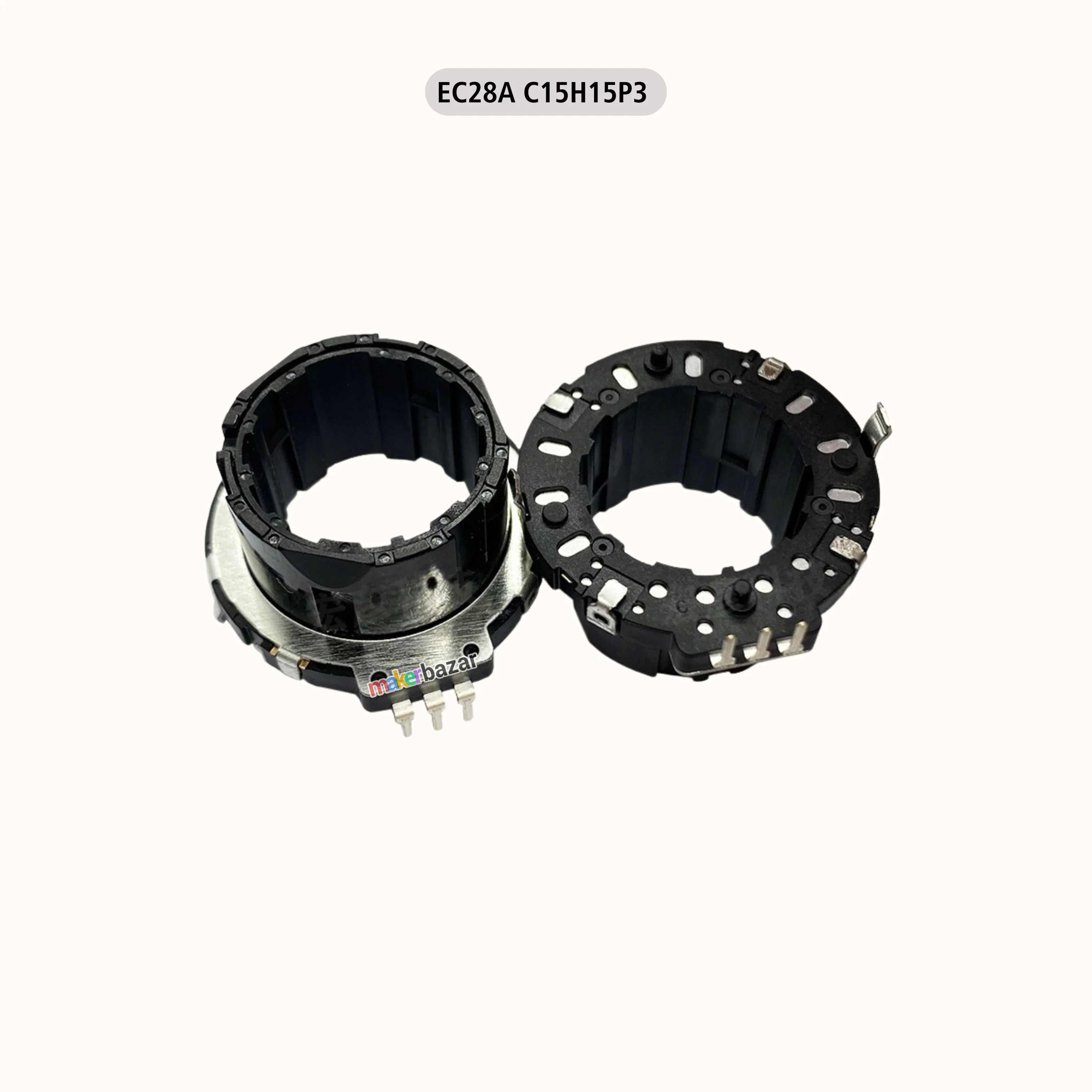

| EC28A C15H15P3 | 28mm | Compact Motion Encoder |

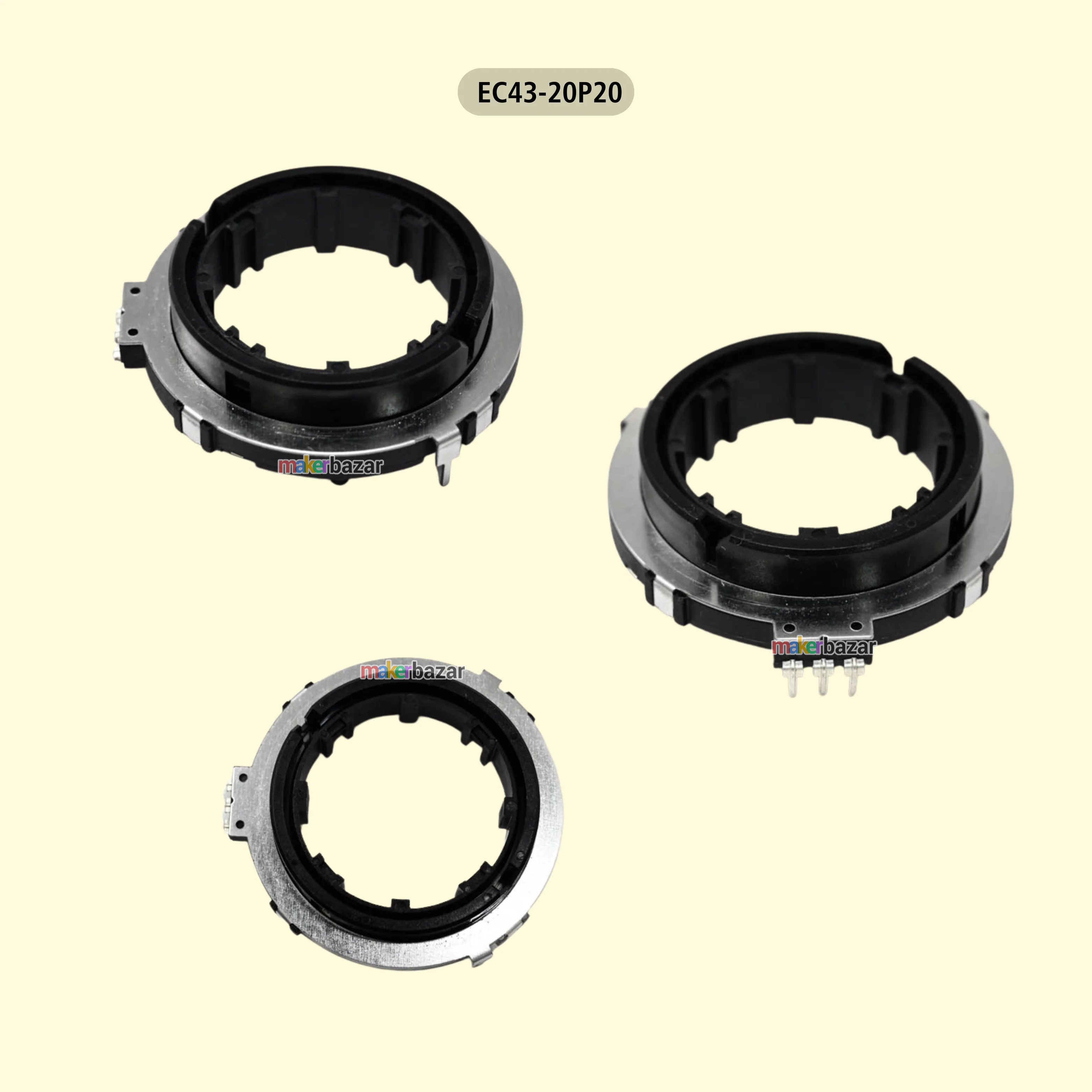

| EC43-20P20 | 43mm | Industrial Rotary Feedback |

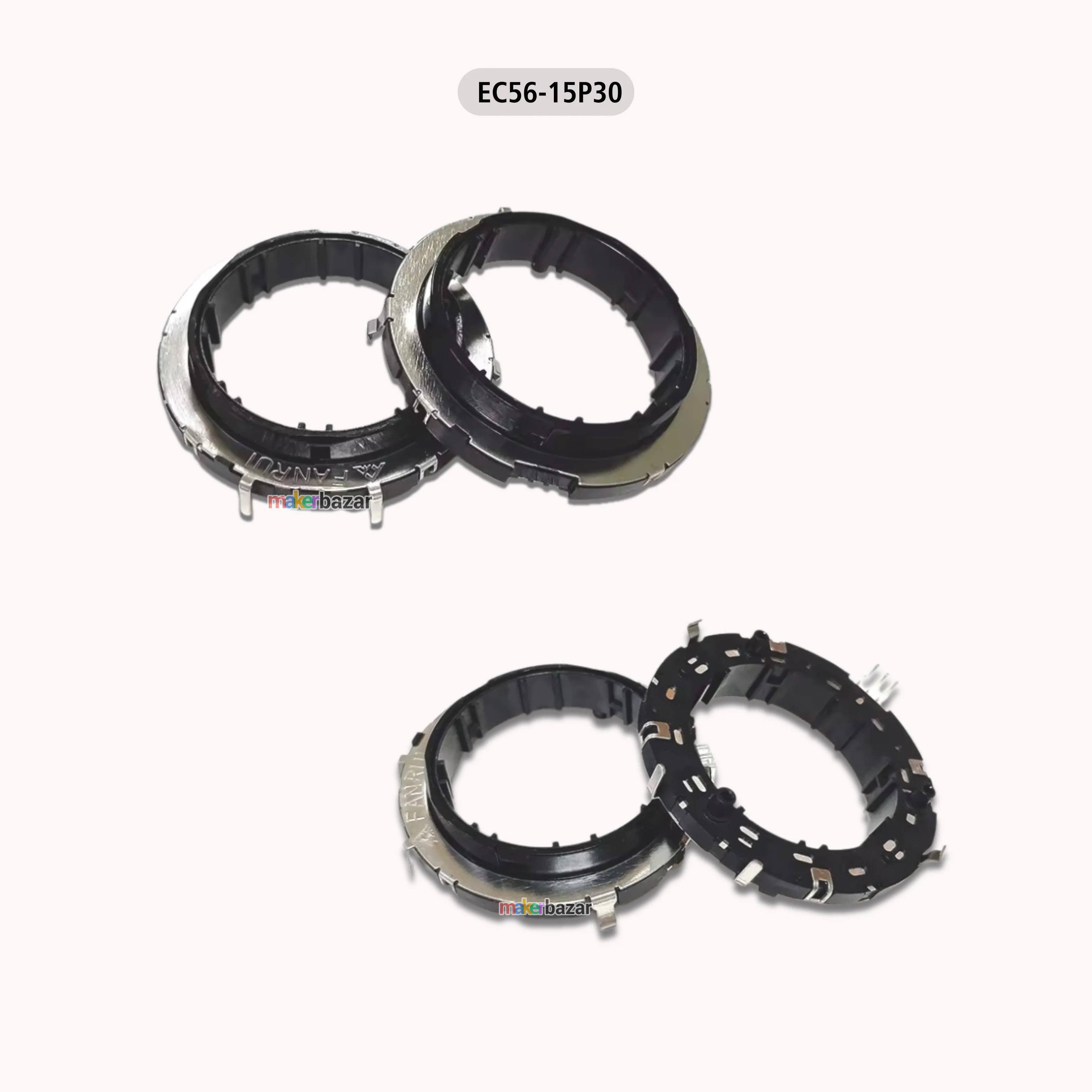

| EC56-15P30 | 56mm | Heavy-Duty Encoder |
Applications
- Industrial Automation Systems
- Robotics & Motion Control
- CNC Machines
- Motor Speed Monitoring
- Rotary Position Sensing
- Automation Equipment
- Servo & Control Systems
- Embedded Motion Applications
Precautions
- Ensure correct shaft alignment during installation.
- Avoid excessive mechanical force on the encoder shaft.
- Protect the encoder from moisture and dust exposure.
- Verify voltage and signal compatibility before connection.
- Use proper shielding to minimize electrical noise interference.
