DRV8825 Stepper Motor Driver with Aluminum Heat Sink
DRV8825 3D printer Motor Driver Module with Aluminum Heat Sink

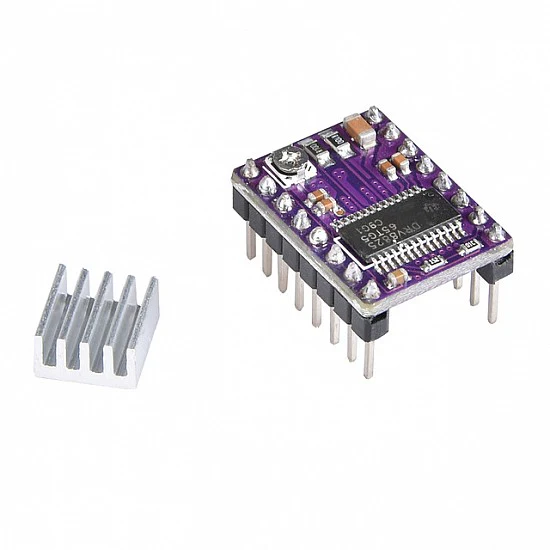

The DRV8825 Stepper Motor Driver with Aluminum Heat Sink is a breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver.
The module has a pinout and interface that are nearly identical to those of the A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications.
The DRV8825 features adjustable current limiting, overcurrent, and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
DRV8825 3D printer Motor Driver Module with Aluminum Heat Sink
The DRV8825 Stepper Motor Driver with Aluminum Heat Sink is a breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver.
The module has a pinout and interface that are nearly identical to those of the A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications.
The DRV8825 features adjustable current limiting, overcurrent, and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
Original: $1.07
-70%$1.07
$0.32Description
DRV8825 3D printer Motor Driver Module with Aluminum Heat Sink
The DRV8825 Stepper Motor Driver with Aluminum Heat Sink is a breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver.
The module has a pinout and interface that are nearly identical to those of the A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications.
The DRV8825 features adjustable current limiting, overcurrent, and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).
