Tank Robot Smart Car Chassis

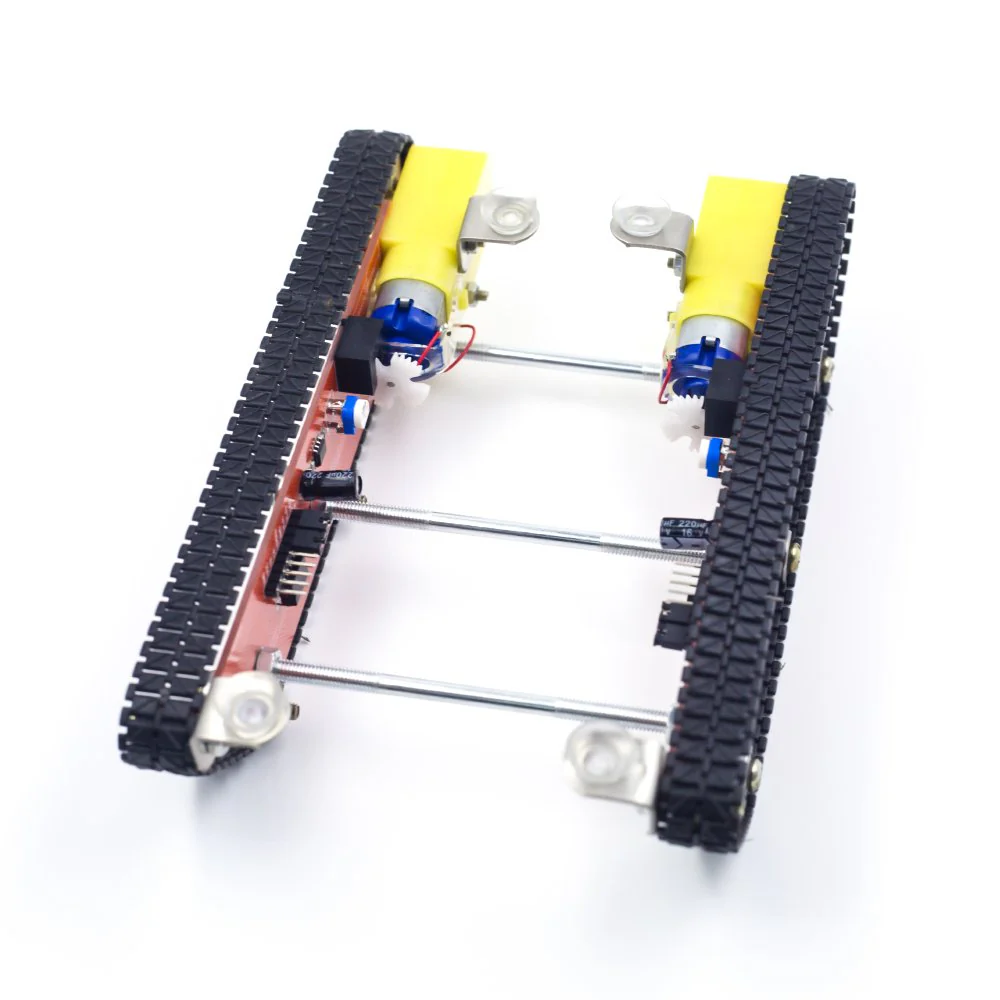

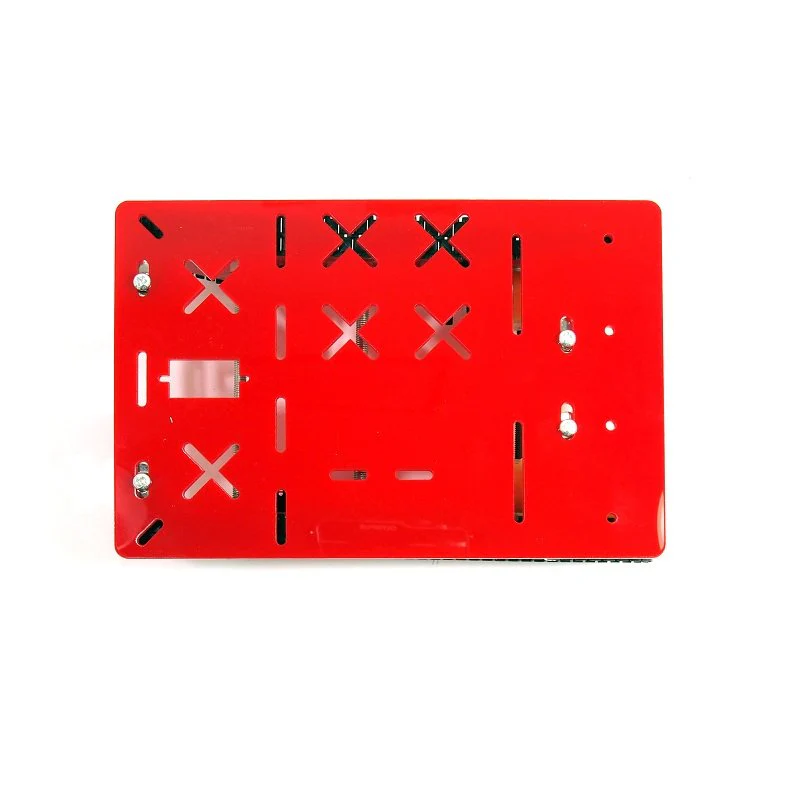

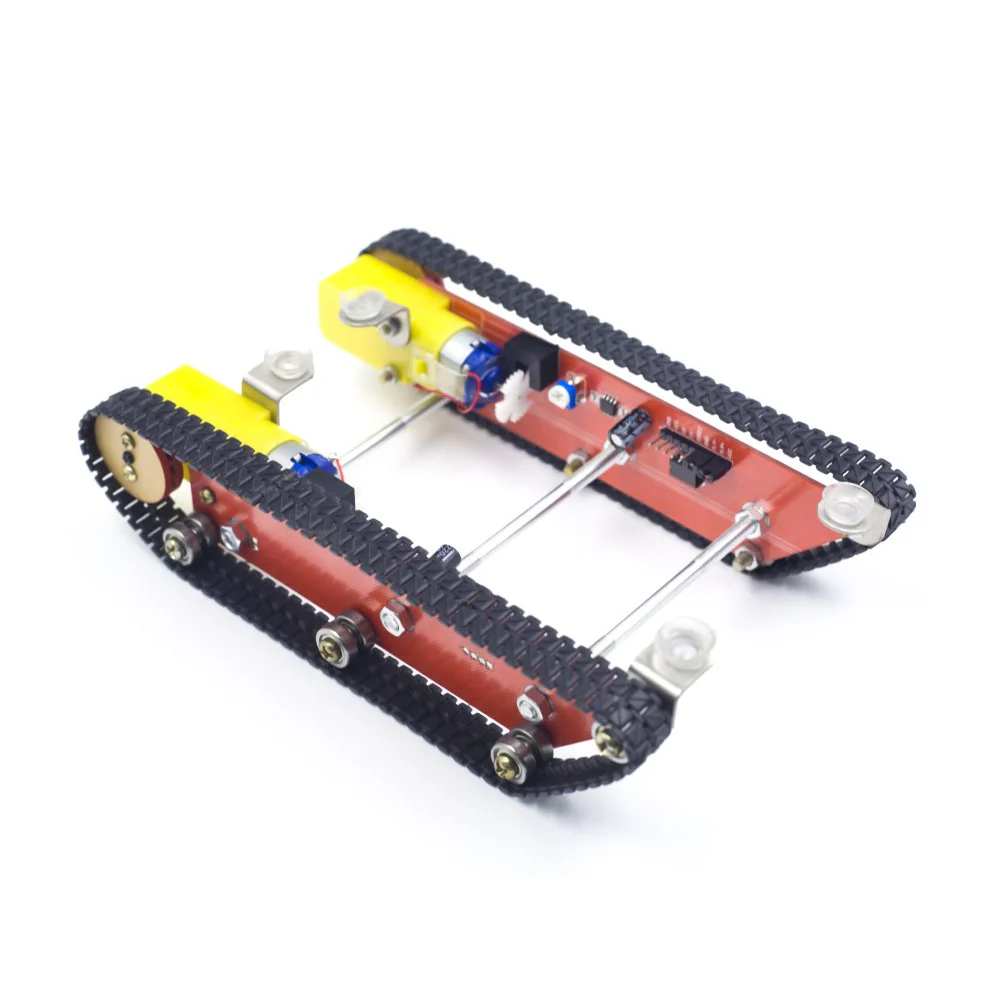

Unlike most of the Smart Tanks which rely on friction to drive the track, this newly designed metal body with acrylic plate Smart Tank has track gears directly connected to the power system to avoid track slipping issue. Together with the well-designed size and location of the bearings, this new smart Tank Robot Smart Car Chassis is ensured to have seamless motion.

Note: Common Ground is needed for the Controller Board and the Tank.

---

Pin Description:

1.  GND: Ground Connection of LM393 and Speed Sensor
2. VCC: Power Connection of LM393 and Speed Sensor
3. IA: Motor Driver L9110 Reverse Input
4. IB: Motor Driver L9110 Forward Input
5. SPEED: Output of Speed Sensor
6. M.P-: -ve Power Supply of L9110 and Motor
7. M.P+: +ve Power Supply of L9110 and Motor

---

Specifications and Features:

1. Arduino Compatible
2. L9110 Connected and Included
3. Operating Voltage: 3V – 12V
4. Opto Coupler Speed Sensor is Included
5. Chassis Kit, Belts, Motors Are Included
6. Motor Operating Voltage: 3V – 8V
7. Motor Maximum Torque: 1.5kg.cm at 7.2V
8. Motor Speed Without Load: 250rpm/m at 7.2V
9. Motor Load current: 250mA at 7.2V
10. GND: Ground Connection of LM393 and Speed Sensor
11. VCC: Power Connection of LM393 and Speed Sensor
12.  IA: Motor Driver L9110 Reverse Input
13. IB: Motor Driver L9110 Forward Input
14. SPEED: Output of Speed Sensor
