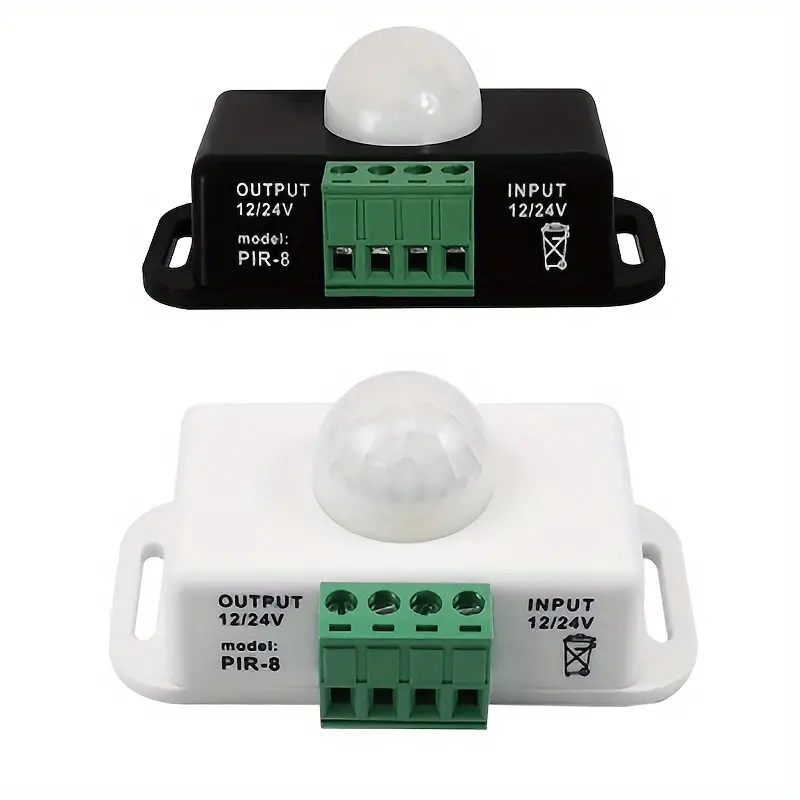

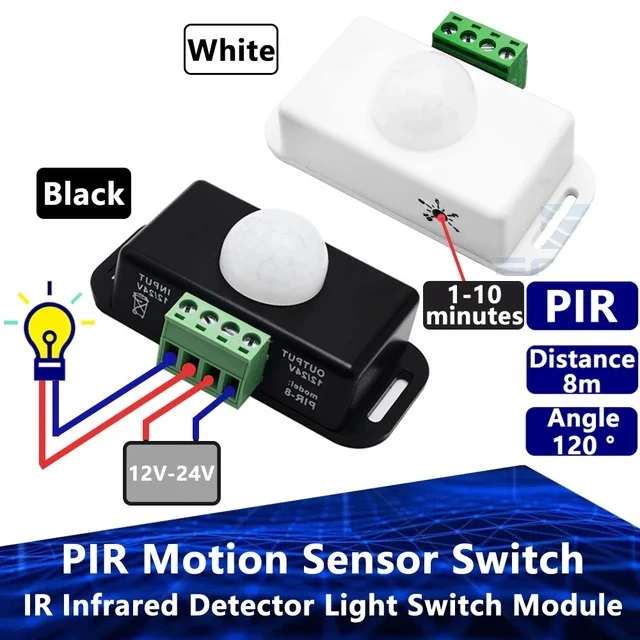

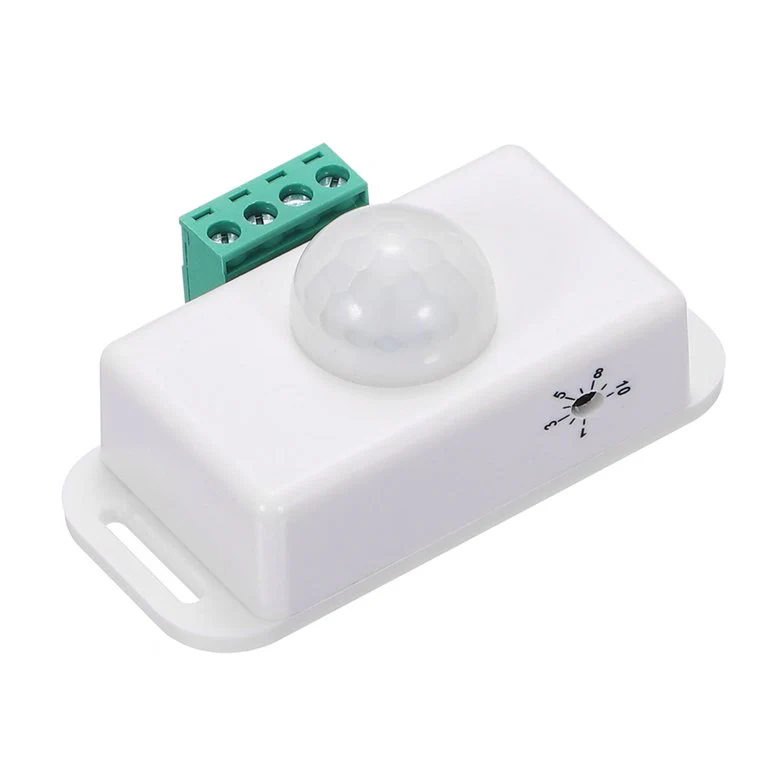

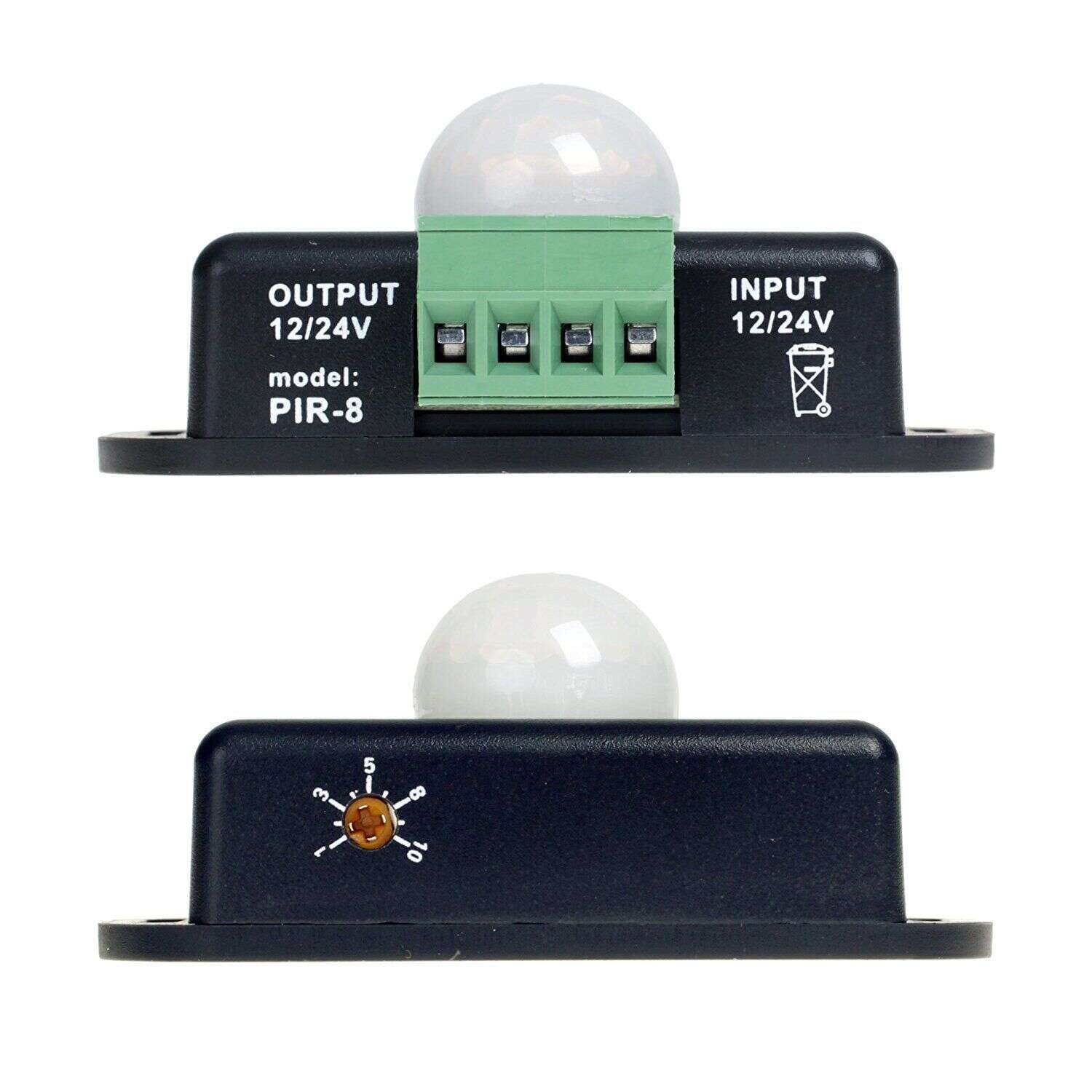

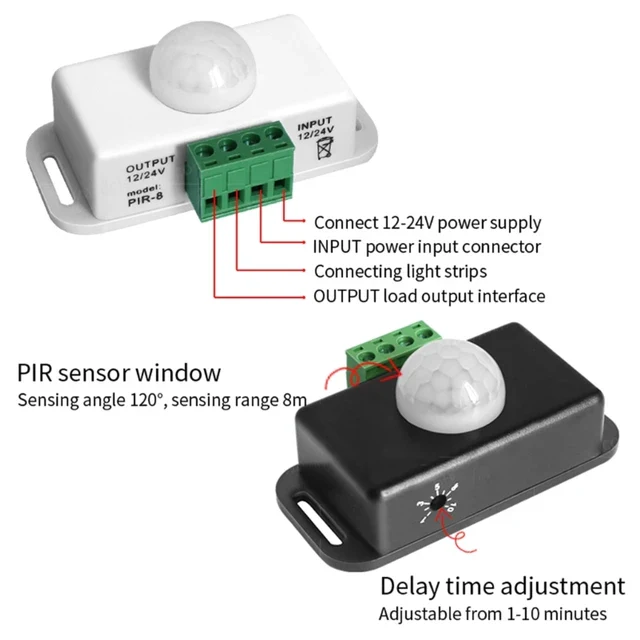

Automatic DC 12V-24V 8A Infrared PIR Motion Sensor Switch for energy-efficient lighting control, security systems, and automated access by detecting motion to activate or deactivate devices

Material:

• ABS (Acrylonitrile Butadiene Styrene): Durable and lightweight plastic material used for the sensor switch enclosure, providing robustness and longevity.

Size:

• Dimensions: 76 x 45 x 34 mm (Length x Width x Height)
  Compact size makes it easy to install in various locations without occupying much space.

Color:

• Black & White: Sleek and versatile color combination that blends with most environments.

Input Voltage:

• DC 12-24V: Compatible with a range of DC voltages, making it suitable for different electrical systems.

Output Voltage:

• DC 12-24V: Provides a consistent voltage output to connected devices, ensuring stable operation.

Output Current:

• Maximum 6A: Can handle a maximum current of 6 amps, supporting a variety of electrical loads.

Output Channel:

• 1 Channel: Controls a single output channel, ideal for simple applications or single-device control.

Power Rating:

• 72W (12VDC), 144W (24VDC): Maximum power handling capacity, supporting devices with power needs up to 72 watts at 12V or 144 watts at 24V.

Sensor Type:

• Infrared Motion Sensor: Detects motion using infrared technology, activating the output when motion is sensed.

Sensing Distance:

• 8 Meters: Effective detection range up to 8 meters, allowing for flexible placement and coverage.

Detecting Angle:

• 120°: Wide angle of detection ensures broad coverage for motion sensing.

Delay Time:

• 1-10 Minutes (Adjustable): User-adjustable delay time before the sensor switches off, allowing customization based on specific needs.

IP Rating:

• IP20 (Non-Waterproof): Suitable for indoor use only; not resistant to water exposure, ensuring protection against solid objects but not moisture.

Working Temperature:

• -20°C to +60°C: Operates effectively within a wide temperature range, suitable for various environmental conditions.
