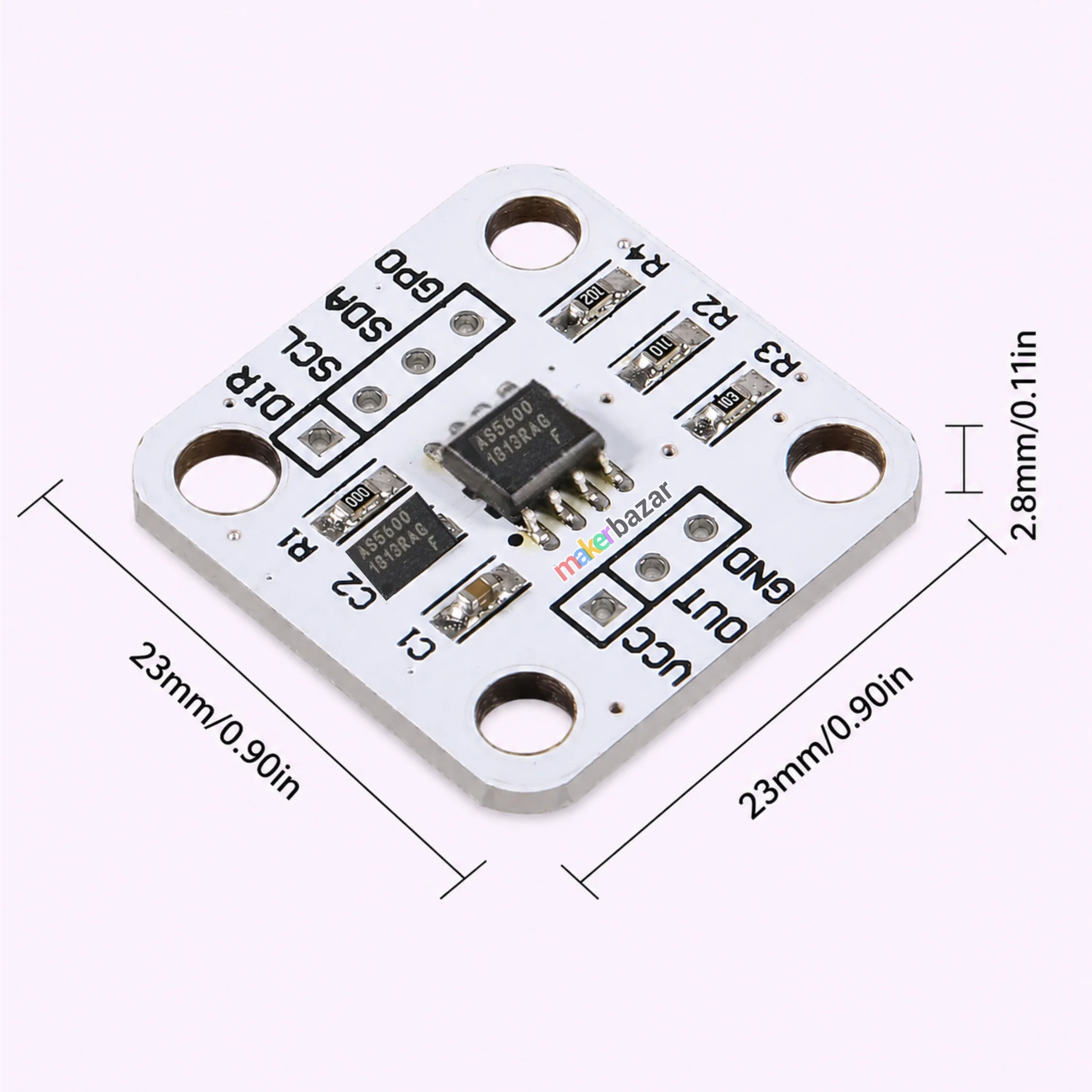

AS5600 Magnetic Encoder Sensor Module
AS 5600 Magnetic Encoder Sensor Module for Precise Angle Measurement
The AS5600 Magnetic Encoder Sensor Module is a high-precision, non-contact magnetic rotary position sensor designed for accurate angle measurement and motion control applications. Utilizing Hall-effect sensing technology, the module detects changes in a magnetic field and converts them into precise angular position data with a 12-bit resolution, providing up to 4096 positions per revolution.
The AS5600 supports multiple output formats including I2C, PWM, and Analog Voltage, making it highly versatile for integration with microcontrollers, robotics systems, motor controllers, CNC machines, and 3D printers. Its non-contact design ensures long operational life with minimal wear, making it ideal for industrial, educational, and DIY electronics projects.
Key Features
- High-precision 12-bit magnetic rotary encoder
- Non-contact Hall-effect sensing technology
- Up to 4096 positions per revolution
- Supports I2C digital communication
- PWM output for angle measurement applications
- Analog voltage output option
- Compact module for embedded systems
- Low power consumption operation
- Wide operating temperature range
- Suitable for robotics, motor control, and automation projects
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Magnetic Encoder Sensor Module |
| Model | AS5600 |
| Sensor Technology | Hall Effect Magnetic Encoder |
| Resolution | 12-bit (4096 Positions per Revolution) |
| Power Supply | 3.3V DC |
| Output Interfaces | I2C, PWM, Analog Voltage |
| Measurement Type | Rotary Angle Position Detection |
| Sensing Method | Non-Contact Magnetic Induction |
| Operating Temperature | -40°C to +125°C |
| Mounting Type | PCB Module |
| Application | Angle Measurement & Position Feedback |

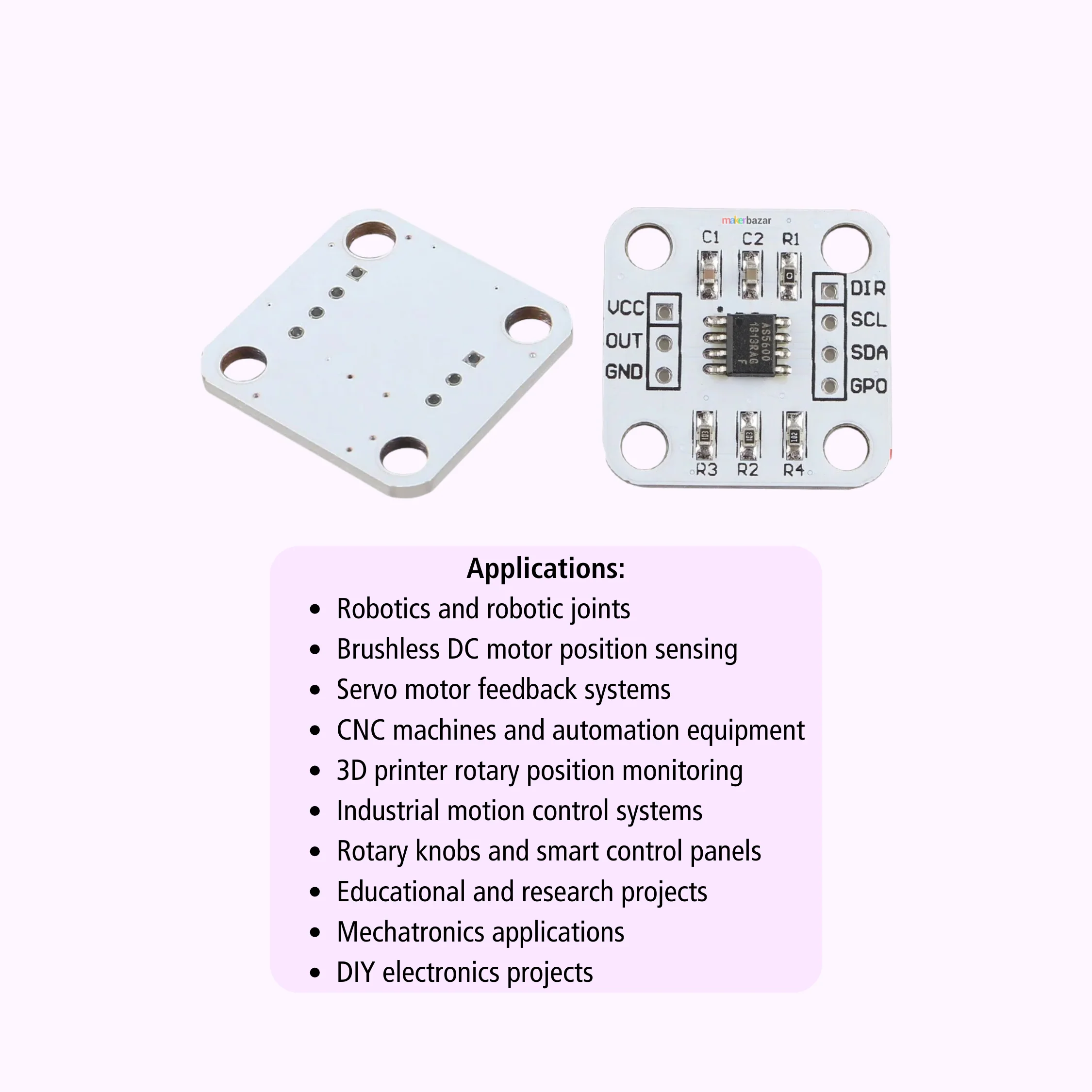

Applications
- Robotics and robotic joints
- Brushless DC motor position sensing
- Servo motor feedback systems
- CNC machines and automation equipment
- 3D printer rotary position monitoring
- Industrial motion control systems
- Rotary knobs and smart control panels
- Educational and research projects
- Mechatronics applications
- DIY electronics projects
Precautions
- Use a compatible magnet positioned correctly above the sensor for accurate readings.
- Operate only within the recommended 3.3V supply range.
- Avoid strong external magnetic fields that may affect sensor accuracy.
- Ensure proper alignment between the magnet and sensor axis.
- Handle the module carefully to avoid damage from static electricity.
- Verify interface compatibility before connecting to controllers.
AS 5600 Magnetic Encoder Sensor Module for Precise Angle Measurement
The AS5600 Magnetic Encoder Sensor Module is a high-precision, non-contact magnetic rotary position sensor designed for accurate angle measurement and motion control applications. Utilizing Hall-effect sensing technology, the module detects changes in a magnetic field and converts them into precise angular position data with a 12-bit resolution, providing up to 4096 positions per revolution.
The AS5600 supports multiple output formats including I2C, PWM, and Analog Voltage, making it highly versatile for integration with microcontrollers, robotics systems, motor controllers, CNC machines, and 3D printers. Its non-contact design ensures long operational life with minimal wear, making it ideal for industrial, educational, and DIY electronics projects.
Key Features
- High-precision 12-bit magnetic rotary encoder
- Non-contact Hall-effect sensing technology
- Up to 4096 positions per revolution
- Supports I2C digital communication
- PWM output for angle measurement applications
- Analog voltage output option
- Compact module for embedded systems
- Low power consumption operation
- Wide operating temperature range
- Suitable for robotics, motor control, and automation projects
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Magnetic Encoder Sensor Module |
| Model | AS5600 |
| Sensor Technology | Hall Effect Magnetic Encoder |
| Resolution | 12-bit (4096 Positions per Revolution) |
| Power Supply | 3.3V DC |
| Output Interfaces | I2C, PWM, Analog Voltage |
| Measurement Type | Rotary Angle Position Detection |
| Sensing Method | Non-Contact Magnetic Induction |
| Operating Temperature | -40°C to +125°C |
| Mounting Type | PCB Module |
| Application | Angle Measurement & Position Feedback |
Applications
- Robotics and robotic joints
- Brushless DC motor position sensing
- Servo motor feedback systems
- CNC machines and automation equipment
- 3D printer rotary position monitoring
- Industrial motion control systems
- Rotary knobs and smart control panels
- Educational and research projects
- Mechatronics applications
- DIY electronics projects
Precautions
- Use a compatible magnet positioned correctly above the sensor for accurate readings.
- Operate only within the recommended 3.3V supply range.
- Avoid strong external magnetic fields that may affect sensor accuracy.
- Ensure proper alignment between the magnet and sensor axis.
- Handle the module carefully to avoid damage from static electricity.
- Verify interface compatibility before connecting to controllers.
Original: $1.58
-70%$1.58
$0.47Description
AS 5600 Magnetic Encoder Sensor Module for Precise Angle Measurement
The AS5600 Magnetic Encoder Sensor Module is a high-precision, non-contact magnetic rotary position sensor designed for accurate angle measurement and motion control applications. Utilizing Hall-effect sensing technology, the module detects changes in a magnetic field and converts them into precise angular position data with a 12-bit resolution, providing up to 4096 positions per revolution.
The AS5600 supports multiple output formats including I2C, PWM, and Analog Voltage, making it highly versatile for integration with microcontrollers, robotics systems, motor controllers, CNC machines, and 3D printers. Its non-contact design ensures long operational life with minimal wear, making it ideal for industrial, educational, and DIY electronics projects.
Key Features
- High-precision 12-bit magnetic rotary encoder
- Non-contact Hall-effect sensing technology
- Up to 4096 positions per revolution
- Supports I2C digital communication
- PWM output for angle measurement applications
- Analog voltage output option
- Compact module for embedded systems
- Low power consumption operation
- Wide operating temperature range
- Suitable for robotics, motor control, and automation projects
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | Magnetic Encoder Sensor Module |
| Model | AS5600 |
| Sensor Technology | Hall Effect Magnetic Encoder |
| Resolution | 12-bit (4096 Positions per Revolution) |
| Power Supply | 3.3V DC |
| Output Interfaces | I2C, PWM, Analog Voltage |
| Measurement Type | Rotary Angle Position Detection |
| Sensing Method | Non-Contact Magnetic Induction |
| Operating Temperature | -40°C to +125°C |
| Mounting Type | PCB Module |
| Application | Angle Measurement & Position Feedback |
Applications
- Robotics and robotic joints
- Brushless DC motor position sensing
- Servo motor feedback systems
- CNC machines and automation equipment
- 3D printer rotary position monitoring
- Industrial motion control systems
- Rotary knobs and smart control panels
- Educational and research projects
- Mechatronics applications
- DIY electronics projects
Precautions
- Use a compatible magnet positioned correctly above the sensor for accurate readings.
- Operate only within the recommended 3.3V supply range.
- Avoid strong external magnetic fields that may affect sensor accuracy.
- Ensure proper alignment between the magnet and sensor axis.
- Handle the module carefully to avoid damage from static electricity.
- Verify interface compatibility before connecting to controllers.
